Berry Animation Framework~

Requires #define USE_BERRY_ANIMATION, included in Tasmota32

A lightweight animation framework for controlling addressable LED strips (WS2812, SK6812, etc.) on Tasmota-based ESP32 devices.

Why a DSL?~

Writing LED animations in pure Berry code requires understanding the animation engine internals, managing timing loops, and handling frame buffers manually. Animations are inherently asynchronous - they run over time while other code executes - making them difficult to manage with traditional state machines. The Animation DSL (Domain-Specific Language) simplifies this dramatically:

  • Declarative, not imperative - Just specify what you want and how long it should take; the framework handles all intermediate states and timing
  • No state machines - Forget about tracking animation phases, transitions, and timing manually
  • Readable syntax - Write animation pulse = pulsating_animation(color=red, period=2s) instead of dozens of lines of Berry code
  • Automatic engine management - No need to create engines, manage frame buffers, or handle timing
  • Built-in effects - Access to pulse, breathe, fire, comet, sparkle, wave, and many more effects
  • Dynamic parameters - Oscillating values (sine, triangle, smooth) without manual math
  • Sequences and templates - Orchestrate complex shows with simple syntax

The DSL transpiles to standard Berry code, so you get the best of both worlds: easy authoring and full Berry compatibility. You can inspect the generated code, learn from it, or use it directly on devices without DSL support.

Online Emulator~

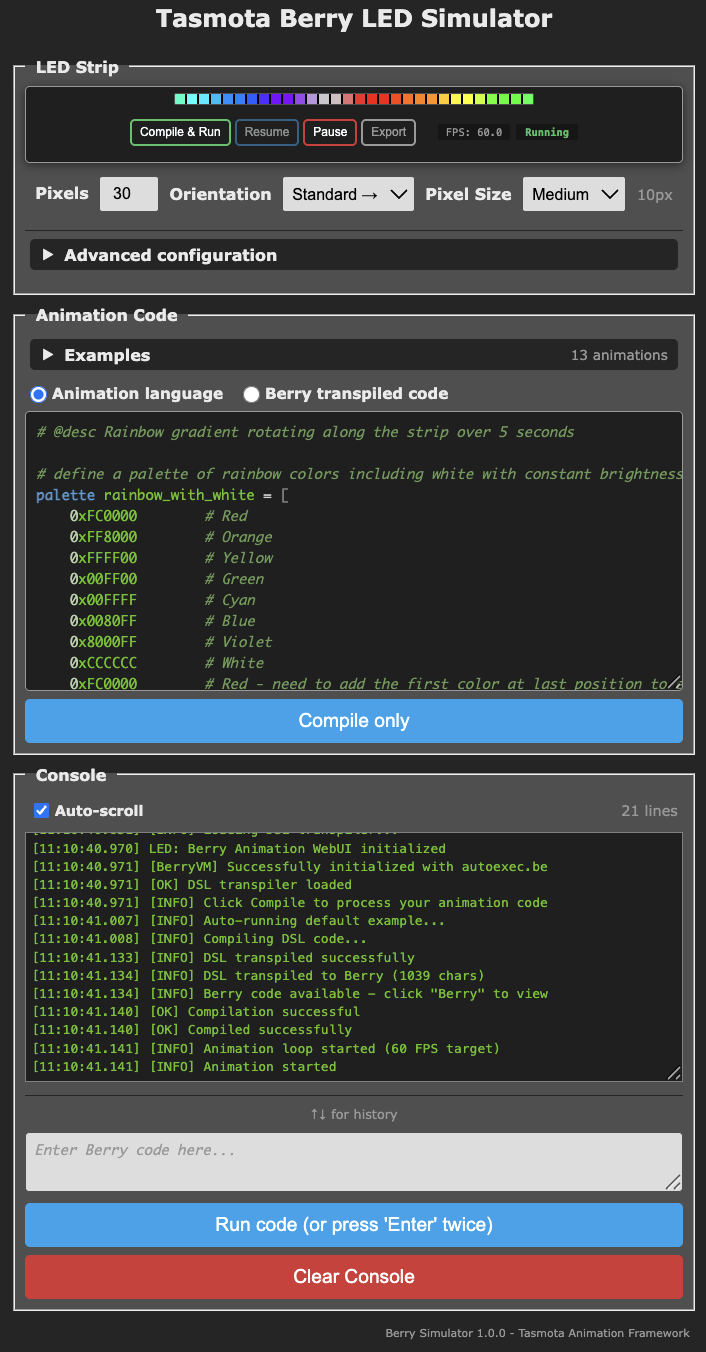

Test and create animations without a Tasmota device using the online emulator:

Tasmota_Berry_LED_emulator

https://tasmota.github.io/docs/Tasmota-Berry-emulator/

The emulator runs entirely in your browser with no server required. It includes:

  • A complete Berry interpreter compiled to WebAssembly
  • Minimal Tasmota device emulation (LED strips, GPIO, timing)
  • Real-time LED strip visualization
  • DSL editor with syntax highlighting

Once your animation works in the emulator, copy the transpiled Berry code to your Tasmota device - it runs identically.

Firmware Options~

Option Description
#define USE_BERRY_ANIMATION Core animation framework (required)
#define USE_BERRY_ANIMATION_DSL Optional: DSL compiler with simplified Web UI for on-device animation editing

Without USE_BERRY_ANIMATION_DSL, use the online emulator to create animations and deploy the compiled Berry code.

Quick Start~

Simple Breathing Animation~

animation pulse = breathe_animation(color=red, period=2s)
run pulse

Rainbow Smooth Color Cycling~

animation rainbow = rich_palette_animation(colors=PALETTE_RAINBOW)
run rainbow

Animation Sequence~

animation red_pulse = breathe_animation(color=red, period=2s)
animation blue_pulse = breathe_animation(color=blue, period=1.5s)

sequence show repeat forever {
  play red_pulse for 4s
  wait 200ms
  play blue_pulse for 3s
  wait 300ms
}
run show

DSL Syntax Overview~

Numbers~

Time Values~

Time values require a unit suffix and are converted to milliseconds:

500ms       # Milliseconds (stays 500)
2s          # Seconds (converted to 2000ms)
1m          # Minutes (converted to 60000ms)

Percentages~

Percentages are converted to 0-255 range:

0%          # Converted to 0
50%         # Converted to 128
100%        # Converted to 255

Colors and Palettes~

# Hex colors
color my_red = 0xFF0000

# Predefined: red, green, blue, white, yellow, orange, purple, cyan...

# Palettes for gradients
palette sunset = [
  (0, navy), (128, purple), (255, orange)
]

# Built-in palettes: PALETTE_RAINBOW, PALETTE_FIRE...

Value Providers (Oscillators)~

Create dynamic values that change over time:

set breathing = smooth(min_value=50, max_value=255, duration=3s)
animation pulse = solid(color=red)
pulse.opacity = breathing

Available: smooth, triangle, sine_osc, linear, square, ease_in, ease_out, elastic, bounce

Template Animations~

Create reusable, parameterized animation patterns:

template animation pulse_effect {
  param pulse_color type color
  param speed

  animation pulse = pulsating_animation(color=pulse_color, period=speed)
  run pulse
}

animation red_pulse = pulse_effect(color=red, speed=2s)
animation blue_pulse = pulse_effect(color=blue, speed=1s)

sequence show repeat forever {
  play red_pulse for 5s
  play blue_pulse for 5s
}
run show

Animation Reference~

Animation Description
solid Solid color fill
pulsating_animation Breathing/pulsing effect with smooth transitions
breathe_animation Natural breathing effect with customizable curve
beacon_animation Pulse/highlight at specific position with optional slew
crenel_animation Crenel/square wave pattern
comet_animation Moving comet with fading tail
twinkle_animation Twinkling stars effect
fire_animation Realistic fire simulation
rich_palette Smooth palette color transitions
gradient_animation Linear or radial color gradients
palette_gradient_animation Gradient patterns with palette colors
palette_meter_animation Meter/bar patterns
gradient_meter_animation VU meter with gradient and peak hold
noise_animation Perlin noise patterns
wave_animation Wave motion effects
