Bluetooth for ESP32 ~

(Bluetooth version 4.x)

MI32 Sensors~

#define USE_MI_ESP32       // (ESP32 only) Add support for ESP32 as a BLE-bridge (+9k2 mem, +292k flash)

Different vendors offer Bluetooth solutions, mostly as part of the Xiaomi brand, often under the Mijia label. The sensors supported by Tasmota use BLE (Bluetooth Low Energy) to transmit the sensor data, but they differ in their accessibilities quite substantially.

Basically all of them use the so-called "MiBeacons" which are BLE advertisement packets with a certain data structure, which are broadcasted by the devices automatically while the device is not in an active Bluetooth connection. The frequency of these messages is set by the vendor and ranges from one per 3 seconds to one per hour (e.g., for the battery status of the LYWSD03MMC). Motion sensors and BLE remote controls start to send when an event is triggered. These packets already contain the sensor data and can be passively received by other devices and will be published regardless if a user decides to read out the sensors via connections or not. Thus the battery life of a BLE sensor is not influenced by reading these advertisements and the big advantage is the power efficiency as no active bi-directional connection has to be established. The other advantage is, that scanning for BLE advertisements can happen nearly parallel (very quickly one after the other), while a direct connection must be established for at least a few seconds and will then block both involved devices for that time.

This is therefore the preferred option, if supported by the sensor.

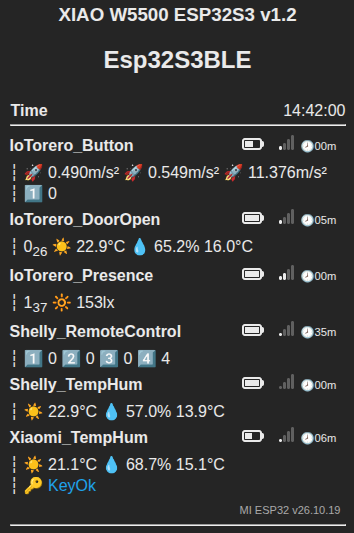

Supported Devices~

The naming conventions in the product range of Bluetooth sensors in Xiaomi universe can be a bit confusing. The exact same sensor can be advertised under slightly different names depending on the seller (Mijia, Xiaomi, Cleargrass, ...).

MJ_HT_V1	LYWSD02	CGG1	CGD1
temperature, humidity, battery	temperature, humidity, battery	temperature, humidity, battery	temperature, humidity, battery
passive for all entities, reliable battery value	battery only active, thus not on the NRF24L01, set clock and unit, very frequent data sending	passive for all entities, reliable battery value	battery only active, thus not on the NRF24L01, no reliable battery value, no clock functions

MiFlora	LYWSD03MMC / ATC	NLIGHT	MJYD2S
temperature, illuminance, soil humidity, soil fertility, battery, firmware version	temperature, humidity, battery	motion	motion, illuminance, battery, no-motion-time
passive only with newer firmware (>3.0?), battery only active, thus not on the NRF24L01	passive only with decryption or using custom ATC-firmware, no reliable battery value with stock firmware	NRF24L01, ESP32	passive only with decryption, thus only NRF24L01, ESP32

YEE RC	MHO-C401	MHO-C303	MCCGQ02HL
button press (single and long)	temperature, humidity, battery	temperature, humidity, battery	door opening/closing, light present
passive	equal to the LYWS03MMC, but no custom firmware yet	passive for all entities, set clock and unit, no alarm functions, very frequent data sending	passive, difficult to get key (must be close, press button)

WZ-KR220IBLE-310
button press (1-3 buttons)
passive

passive means data is received via BLE advertisements while active means data is received via a bidirectional connection to the sensor.

LYWSD03MMC sends encrypted sensor data every 10 minutes. As there are no confirmed reports about correct battery presentation of the sensor (always shows 99%), this function is currently not supported.

MJYD2S sends motion detection events and 2 discrete illuminance levels (1 lux or 100 lux for a dark or bright environment). Additionally battery level and contiguous time without motion in discrete growing steps (no motion time = NMT).

WZ-KR220IBLE-310~

These bluetooth switches are NOT Xiaomi branded devices and do not use encryption. They are normally be found in combination with a Tuya relay module and avaialble in 1 2 or 3 button versions.
Also known as bluetooth remote controls. All of these switches use the same source MAC address (C1A2A3A4A5A6). To be able to distinguish individual switchs and buttons, the end of the MAC address is replaced with the unique switch_id. Thus you can use BLEAlias to name individual switches and monitor for the button presses.

To use these switches, you also need to set a few other MI32 options

Two button switches are btn 1 and 3 (not 1 and 2)

If BLEAlias is used then an alias for C1A2A3A4A5A6 must be included, along with the alias for the unique switch

BLEAlias c1a2a3a40048=LoungeBtn
BLEAlias c1a2a3a4a5a6=AnyButton

Encryption and bind_key~

Most of the older sensors use unencrypted messages, which can be read by all kinds of BLE devices or even a NRF24L01. With the arrival of newer sensors, such as LYWSD03MMC, MHO-C401 or MJYD2S, came the problem of encrypted data in MiBeacons, which can be decrypted in Tasmota.

Some sensor still allow an unencrypted connection the reading of the sensor data using normal subscription methods to GATT-services. This is more power hungry than the passive reading of BLE advertisements.

Some other sensors like the MJYD2S are not usable without the "bind_key".

It is recommended to obtain the bind_key in any case to reduce the battery drain.

Obtain bind_key~

To get the necessary decryption key ("bind_key") use:

• Xiaomi Cloud Tokens Extractor (Windows executable or Python) - works on any device in the Mi Home app
• pvvx Telink Flasher (Webpage) - LYWSD03MMC, MHO-C401 and CGG1 only
• ATC Telink Flasher (Webpage) - LYWSD03MMC only

Telink Flashers allow the generation of a bind_key by faking a pairing with the Xiaomi cloud.

Use bind_key~

Use the bind_key and MAC address of the sensor to use with commands Mi32Keys or Mi32Key. Tasmota will receive the sensor data roughly every 10 minutes (in two chunks for humidity and temperature with about a minute in between) and decode the data. This is the most energy efficient way.

The current way of storing these keys on the ESP32 is to use Mi32Key command:

MI32Keys <mac or blealias>=<bind_key> <mac or blealias>=<key>

The Key is the 32 character (16 byte) key retrieved by above methods.

Older way of using MI32Key is retained for backward compatibility. Mi32Key needs a 44 character combination of bind_key and MAC:

MI32Keys <bind_keymac>

To retain the data use a rule on startup:

rule1 on System#Boot do backlog MI32key 00112233445566778899AABBCCDDEEFF112233445566; MI32key 00112233445566778899AABBCCDDEEFFAABBCCDDEEFF endon

Commands~

Full list of available Mi Sensors commands.

If you really want to read battery for LYWSD02, Flora and CGD1, consider doing it once a day with a rule:

Backlog Rule1 on Time#Minute=30 do MI32Battery endon; Rule1 1

This will update every day at 00:30 AM.

BLE ESP32~

This allows for the receiving of BLE advertisements from BLE devices, including "iBeacons" and BLE sensors, but also for the control of simple BLE devices, providing for reading, writing and receiving notifications.

#define USE_BLE_ESP32                // Add support for ESP32 as a BLE-bridge (+9k2? mem, +292k? flash)

; *** uncomment the following line if you use Bluetooth or Apple Homekit in a Tasmota32 build. Reduces compile time
;                          lib/libesp32_div

; *** uncomment the following line if you use Bluetooth or Apple Homekit in a Tasmota32 build. Reduces compile time
                          lib/libesp32_div

Be aware, enabling of the native BLE on ESP32 has an impact on Wi-Fi performance. Although later SDK helped a bit, expect more lag on the web interface and on MQTT. If only controlling BLE devices, then scanning can be disabled, which will minimize Wi-Fi impact. BLE can be enabled from the web UI menus.

This is compiled by default in the Bluetooth firmware, but you need to enable it using the webUI Configure BLE button or SetOption115 1 command.

Note that the only configuration stored is the SetOption115 to turn BLE on and off. All other configurations can be set at boot if necessary using Rules.

iBeacon~

Hear adverts from BLE devices, and produce MQTT messages containing RSSI and other information about them. Break out iBeacon specific data if present.

#define USE_IBEACON_ESP32                // Add support for Bluetooth LE passive scan of iBeacon devices

This driver reports all beacons found during a scan with its ID (derived from beacon's MAC address) prefixed with IBEACON_ and RSSI value.

Every beacon report is published as an MQTT tele/%topic%/SENSOR in a separate message:

tele/ibeacon/SENSOR = {"Time":"2021-01-02T12:08:40","IBEACON":{"MAC":"A4C1387FC1E1","RSSI":-56,"STATE":"ON"}}

If the beacon can no longer be found during a scan and the timeout interval has passed the beacon's RSSI is set to zero (0) and it is no longer displayed in the webUI

tele/ibeacon/SENSOR = {"Time":"2021-01-02T12:08:40","IBEACON":{"MAC":"A4C1387FC1E1","RSSI":-56,"STATE":"OFF"}}

Additional fields will be present depending upon the beacon, e.g. NAME, UID, MAJOR, MINOR.

iBeacon MQTT Fields~

Always present~

Optional~

Examples~

Setup a rule to set some aliases at boot time, and only allow those starting iB~

Rule1 ON System#Boot DO backlog iBeacon 1; BLEAlias A4C1386A1E24=iBfred A4C1387FC1E1=iBjames; iBeaconOnlyAliased 2 endon
Rule1 1

Supported Devices~

All Apple compatible iBeacon devices should be discoverable.

Various nRF51822 beacons should be fully Apple compatible, programmable and their battery lasts about a year.

• Amazon.com
• Aliexpress

Cheap "iTag" beacons with a beeper. The battery on these lasts only about a month.

• Aliexpress
• eBay
• Amazon.com

MI32 MQTT Messages~

Because we can have many sensors reporting, tele messages are chunked to have a maximum of four sensors per message.

If you enable MQTT discovery (SetOption19 1), additional MQTT messages are send.

Primarily, at teleperiod or MI32period, discovery messages are sent. These inform Home Assistant about the devices. Device names can be dependent upon BLEAlias, so set BLEAlias at boot.

With Mi32Option6, additional actual data messages are sent on a dedicated topic (set by Mi32Topic) topics including the device name: tele/<mi32topic>/<name>

Each message for one sensor.

These messages can be used without Home Assistant if it is a preferred format.

EQ3 TRV~

A preliminary EQ3 driver is in production. Documentation.

Commands~

Full list of available BLE ESP32 commands.

If you enable MQTT discovery (SetOption19 1), additional MQTT messages are send.

Primarily, at teleperiod or MI32period, discovery messages are sent. These inform Home Assistant about the devices. Device names can be dependent upon BLEAlias, so set BLEAlias at boot.

Backlog Rule1 ON System#Boot DO BLEAlias A4C1386A1E24=fred A4C1387FC1E1=james endon; Rule1 1

Enable static random mac addresses in addition to public mac addresses~

If you have a device which does not appear, it may be advertising on a 'static random' address. Using this command may make it appear, but will also make other devices appear that you may not wish to see... For example phones advertising Covid messages. To know more, google 'BLE static random'. Be aware you can set 2 or 3....

Setup a rule to set some aliases at boot time~

Backlog Rule1 ON System#Boot DO BLEAlias A4C1386A1E24=fred A4C1387FC1E1=james endon; Rule1 1

Enable static random mac addresses in addition to public mac addresses~

BLEAddrFilter 1

Check the interval between BLE tele messages~

BLEPeriod

Set it to 40s: BLEPeriod 40
