VID6608 Automotive gauge driver~

This feature is not included in precompiled binaries

When compiling your build add the following to user_config_override.h:

#ifndef USE_VID6608
#//#define USE_VID6608 // Add support for VID6608 Automotive analog gauge driver (+0k7 code)
#endif

This driver implements support for following driver chips for analog automotive gauges (Switec X25.168, X27.168 and clones) with microstepping support:

  • VID6606 (2 motors)
  • VID6608 (4 motors)
  • VT6608S
  • AX1201728SG
  • BY8920
  • many others

Driver chips with microstepping are the recommended way to drive such motors. They provide much more reliable and smooth movement with reduced noise and help avoid skipped steps.

Driver is configured to perform 320° rotation angle with 12 steps per degree. Total capacity is 3840 steps for whole scale. Driver supports up to 4 motors.

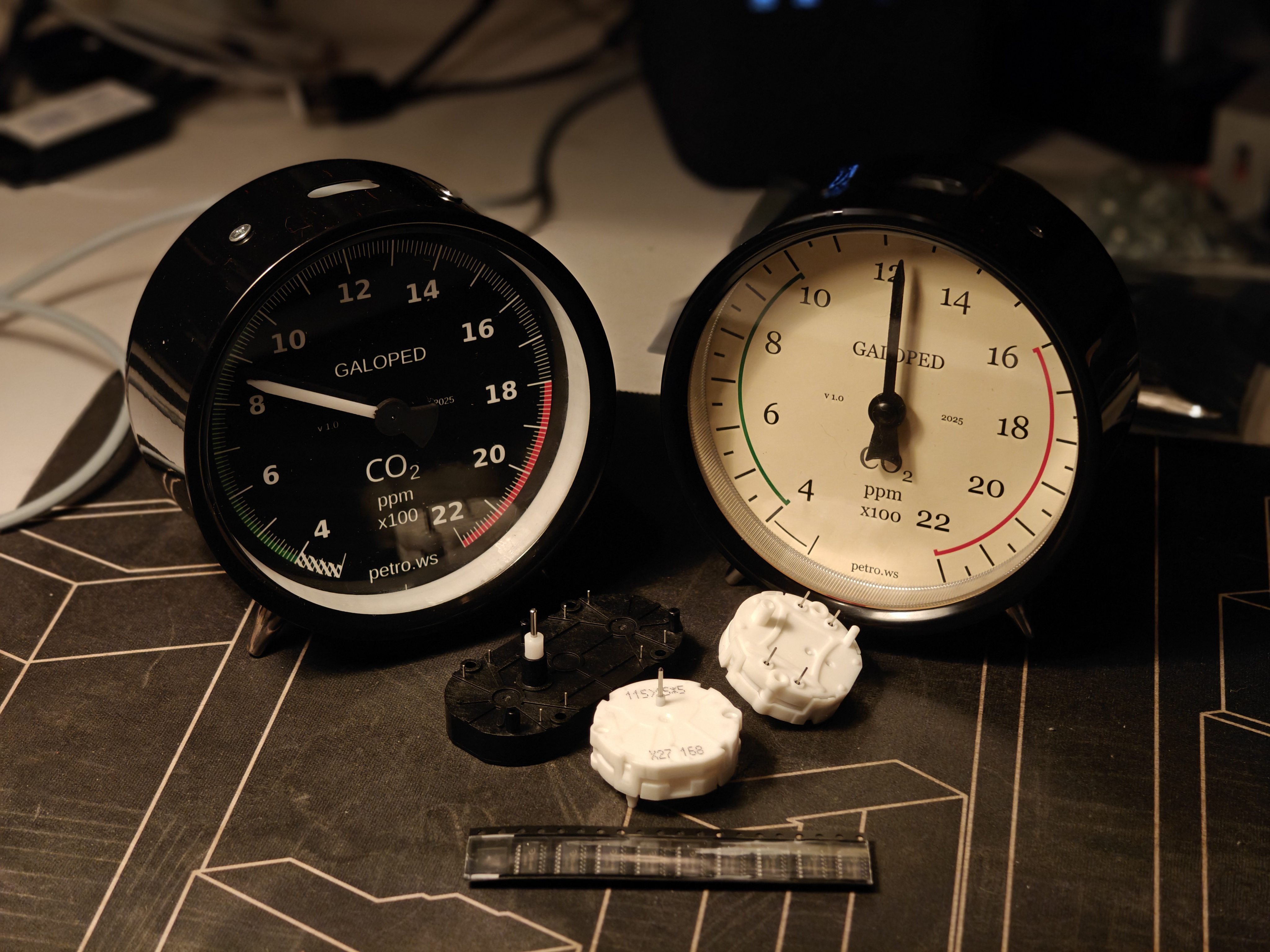

Example hardware

Features~

Driver provides following features:

  • Smooth movement with analog gauge emulation;
  • Built-in homing routine;
  • Advanced homing routine;

Configuration~

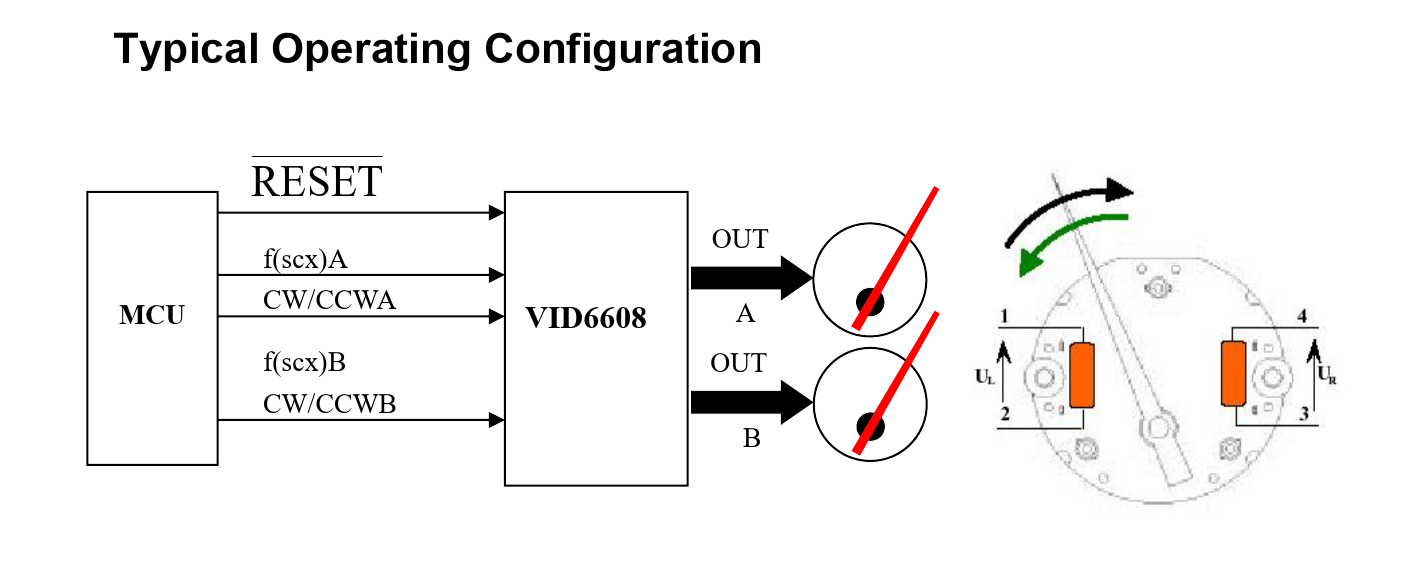

The IC driver requires only 2 pins to drive a single motor, similar to other stepper drivers: one is for step and one for direction. Configuration example from the datasheet:

Example datasheet

See full description and recommendations: VID6608 Datasheet (EN).

Configuration options:

  • USE_VID6608 - Enables driver globally, default is not enabled;
  • VID6608_RESET_ON_INIT - Enables default homing operation at startup, default is true;

Wiring~

VID6608 ESP
VCC 5V
GND GND
f(scx) GPIOx
CW GPIOy

Pin CW used to select movement direction, f(scx) used to drive motor with steps.

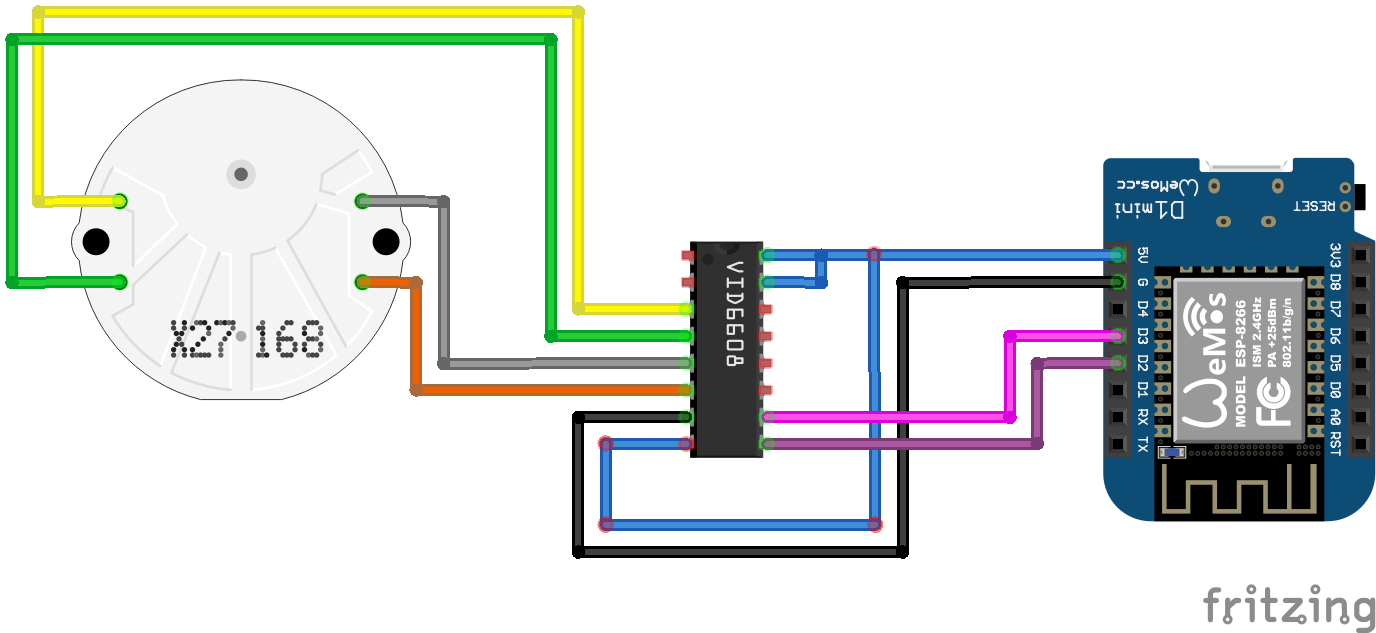

Example wiring:

Example wiring

Tasmota Settings~

In the Configuration -> Configure Module page assign:

  1. GPIOx to VID6608 F
  2. GPIOy to VID6608 CW

After a reboot the driver should detect motor(s) and:

  • Issue homing operation at startup (if enabled);
  • Display "Gauge X" information on web page;

ESP8266 notes~

With ESP8266, the driver also works, but gauge movement is much slower (~2 sec per degree).

Commands~

Driver defines following commands:

Console Commands Description Values
GaugeSet Set position in absolute steps 0 - 3840
GaugeSetPercent Set position in percent 0 - 100
GaugeZero Reset drive; optional argument is saved position 0 - 3840

All commands have Drive suffix. If not set, it drives first motor. If set, it uses Drive number. If suffix is 0 - it drives all motors. Examples:

  • GaugeZero3: Reset drive number 3 with default reset routine;
  • GaugeZero2 751: Reset drive number 2 with expected last position as 751;
  • GaugeSet0 366: Set all drives absolute position 366;
  • GaugeSetPercent 30: Set drive number 1 position to 30%;

Reset routine~

Driver has no feedback option, so the current position is calculated from commands sent only. To ensure that current steps sent match the real position, the driver performs a reset routine: the driver makes a half cycle forward, then full cycle back. If drive will reach end-stop in this case, it will skip steps. This method guarantees that drive movement will end up at position 0. You can observe similar routine in real car dashboard for some models.

Disadvantage of this method is that the motor has to reach the end-stop and bounce there. You can avoid this by saving last commanded position in the external memory and use last known position for advanced homing routine.

The GaugeZero command has an optional argument, where you can pass the last saved position. If this position matches real hardware position, drive will perform full homing without end-stop bounce. This requires disabling default homing by setting:

#define VID6608_RESET_ON_INIT false

and managing external memory to track all commands and restore it on startup.

Here is example for save / restore method into FRAM MB85RC04V I²C memory using Berry Script:

# Connect and prepare i2c FRAM MB85RC04V
var fram_addr = 0x50
var wire = tasmota.wire_scan(fram_addr)
# Address in FRAM to store last gauge position
var addr_pos = 0x0000
# Check initialization
if !wire
   print("FRAM not found")
end
# Function to write FRAM memory, 2 bytes
def fram_write_u16(addr, data)
 if !wire
  return 0
 end
 # Split address and data into two bytes
 var addr_hi = (addr >> 8) & 0x7F
 var addr_lo = addr & 0xFF
 var data_hi = (data >> 8)
 var data_lo = data & 0xFF
 # ---------------- WRITE ----------------
 wire._begin_transmission(fram_addr)
 wire._write(addr_hi)
 wire._write(addr_lo)
 wire._write(data_hi)
 wire._write(data_lo)
 wire._end_transmission(true)
end
# Function to read FRAM memory, 2 bytes
def fram_read_u16(addr)
 if !wire
  return 0
 end
 # Split address and data into two bytes
 var addr_hi = (addr >> 8) & 0x7F
 var addr_lo = addr & 0xFF
 # ---------------- READ ----------------
 wire._begin_transmission(fram_addr)
 wire._write(addr_hi)
 wire._write(addr_lo)
 wire._end_transmission(true)
 wire._request_from(fram_addr, 2)
 var value_hi = wire._read()
 var value_lo = wire._read()
 var value = (value_hi << 8) | value_lo
 return value
end
# Read last gauge position from FRAM
var last_gauge_pos = fram_read_u16(addr_pos)
if last_gauge_pos
 print("FRAM gauge pos read:", last_gauge_pos)
end
# Call Reset option from saved position, and save zero
tasmota.cmd("GaugeZero " + str(last_gauge_pos))
fram_write_u16(addr_pos, 0)
# Function to update Gauge position on CO2 change
def co2_update(value, trigger)
 var drivePos = 180 + ((int(value) - 400) * 2)
 if last_gauge_pos != drivePos
  tasmota.cmd("GaugeSet " + str(drivePos))
  last_gauge_pos = drivePos
  # Save current position into FRAM
  fram_write_u16(addr_pos, int(drivePos))
 end
end
# Add rule to monitor CO2 changes
tasmota.add_rule("S8#CarbonDioxide", co2_update)

This script reads commands from the CO2 sensor, saves them in FRAM, and commands the drive to display them. On startup, last value is read back from FRAM memory and used as argument for GaugeZero to perform calibrated homing operation.

Example FRAM memory is fast and has a minimum 10¹² write operations capacity, which allows a minimum of 31 years of non-stop operation with 1 write per second ratio. You can use other methods as well (i.e. Microchip 74L04: EERAM with flash backup).

Remember that using on-board Flash directly is not safe, due to limited write count and because external power-loss detection circuits are required.
